Used 2019 Dynamax FORCE 36FK HD

Motor Home Super C - Diesel

Stock #JHJS5861

Navasota, TX

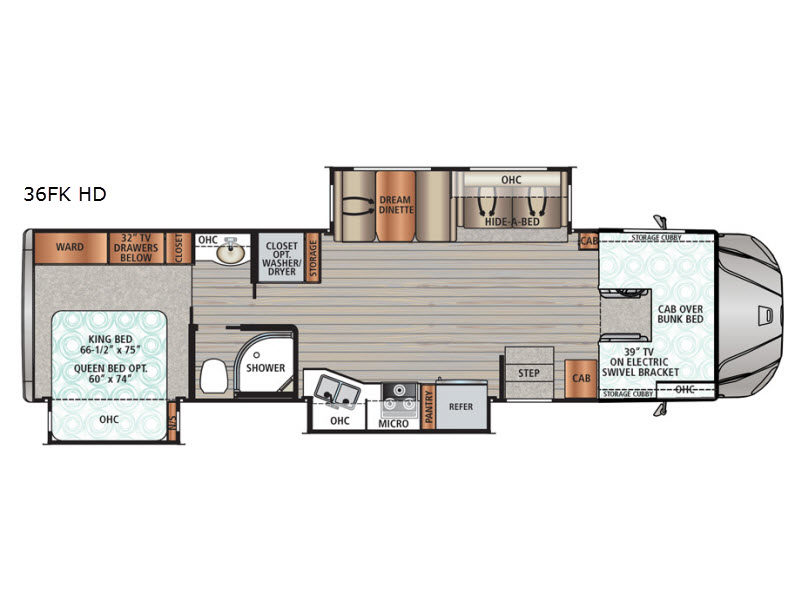

Floorplan - 2016 Dynamax FORCE 36FK HD

1 of 6

Specifications

Sleeps	5	Slides	3
Length	36 ft 8 in	Ext Width	8 ft 5 in
Ext Height	13 ft	Exterior Color	Admiral Blue, Black Mirage, Desert Mirage,Cabernet, Magnetic,
Hitch Weight	20000 lbs	GVWR	33000 lbs
Fresh Water Capacity	90 gals	Grey Water Capacity	52 gals
Black Water Capacity	52 gals	Tire Size	275/80R22.5
Furnace BTU	40000 btu	Generator	8 kW Onan
Fuel Type	Diesel	Miles	9120
Engine	Cummins ISL 8.9L Turbo Diesel	Chassis	Freightliner M2 106
Horsepower	350 hp	Fuel Capacity	100 gals
Wheelbase	270 in	Number Of Bunks	1
Available Beds	King	Torque	1000 ft-lb
Refrigerator Type	Double Door with Ice Maker	Refrigerator Size	16 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	12000 lbs
Axle Weight Rear	23000 lbs	LP Tank Capacity	20.3
Water Heater Capacity	10 gal	Water Heater Type	Electric
TV Info	LR 39" LED TV, BR 32" LED TV	Awning Info	18'
Washer/Dryer Available	Yes	Gross Combined Weight	54000 lbs
Shower Type	Radius	Electrical Service	50 amp
VIN	1FVACXFE8JHJS5861

Features

Standard Features (2019)

Chassis

Freightliner® M2 106 Chassis (33,000-lbs. GVWR/54,000-lbs. GCWR)
Cummins® 8.9L ISL Turbo Diesel Engine (350hp/1,000 lb.-ft. of Torque)
Allison® 3200 TRV Six-Speed Automatic Transmission
100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
6-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (20,000 Tow lbs./2,000 Tongue lbs.) with 7-Way Round Tow Connection*
Brake Controller
Dual-Stage C-Brake by Jacobs® with High/Off/Low Braking Dash Switch
Locking Differential
Airliner® 21,000-lb. Rear Suspension
Manual Air Suspension Dump Valve Switch on the Dash
12,000-lb. Front Axle
23,000-lb. Quiet Ride Rear Axle
275-Amp Alternator
Quick Disconnect Fitting with Tire Inflation Kit
Air Brakes with 4-Wheel ABS
Bilstein® Gas-Charged Front Shock Absorbers
Upgraded Front Sway Bar with Clevis-Style Bushing
Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
Fuel Filter/Water Separator with Primer Pump
Engine Block Heater
Steel-Reinforced, Aluminum Cab
Chrome Grille and Air Intake Grille
Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
Single Front Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
Dual Rear Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
Valve Extensions
4.56 Rear Axle Ratio
Daytime Running Lights
Tinted Door Glass and Operating Wing Windows
Chassis Battery Shut Off Switch in Cab
Leatherette Driver and Passenger Air Ride Seats
Backup and Side View Cameras
Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (Tuner and Antenna), Apple® CarPlay™/ Android® Auto™ Functionality, and Dedicated Camera B
CB Radio with Left Hand Mirror Mounted Antenna
Air Horn
12V Accessory Ports
One Valve Parking Brake System with Warning Indicator
Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Marker Lights with Separate Interrupter Switch
Low Air Pressure Light and Buzzer
Cruise Control
Adjustable Steering Column
18” Leather-Wrapped Steering Wheel
Hydrographic Woodgrain Cab Accents
Power and Heated Exterior Mirrors
Power Windows and Locks
3-Point Seat Belts
Dual Reading Lights
Two (2) Cup Holders in Dash

Construction

2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Gel-Coat Fiberglass Walls
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, Rear Cap, and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dual-Pane, Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Patio Awning with LED Lighting
Aluminum-Wrapped Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps
Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
Front and Rear LED Clearance and Marker
Lighting

Interior

Front Cab-Over Bunk Area with Mattress (59” x 79”)
Premium Vinyl Flooring Throughout
Deluxe Carpet with Pad in Select Living Area Slide Rooms
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Booth Dinette
Coordinating Window Treatments
Day/Night Roller Shades
Hardwood Shaker-Style Cabinetry
Full Extension, Soft-Closing Drawer Guides (Where Applicable)
Hidden Hinges
39” LED TV (Living Area)
JBL® 2.1 Sound Bar with Smart Blu-Ray® Player (Living Area)
Entry with Non-Skid Rubber Steps and Risers
Privacy Curtain for Cab-Over Bunk
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door)
Sealed Gas Range with Solid Surface Covers
Convection Microwave Oven
Solid Surface Countertops with Hand-Laid Tile Backsplash
Double-Bowl Stainless Steel Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover and Remote

Bedroom or Bunk Area

King Bed with Gel-Infused Memory Foam Mattress (72” x 80” – Nominal Size)
Under-Bed Storage (Floor Plan Specific)
Deluxe Padded Headboard
Designer Bedding Package
32” LED TV
Cedar-Lined Wardrobe
Nightstands with Solid Surface Countertops
LED Reading Lights
USB Charging Ports
Bunk Bed Mattresses (28” x 76”) and Privacy Partition (37BHHD)
Two Bunk CD/DVD Players with Monitors (37BHHD)

Bathroom

Fiberglass Shower
Shower Skylight
Glass Shower Door
Oxygenics Body Spa® RV Shower Head
Solid Surface Countertop
Under-Mount Sink with Residential Brushed Nickel Faucet
Porcelain Foot-Flush Toilet
MaxxAir® Power Vent with Built-In Rain Cover and Remote

Utilities

Dual 12V 4D AGM Deep-Cycle, Maintenance-Free Batteries
Battery Disconnect
50-Amp Service with Power Cord Reel
2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip
40,000-BTU LP Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
Thermostatically-Controlled Heating and Cooling
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Interior Monitor Panel with LP/Tank/Battery Readout
Exterior Shower in Service Bay
Exterior GFCI Receptacle
Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup in Service Bay
Thetford® Sani-Con Turbo Macerator System
Black Tank Flush
Furnace-Heated Utility Compartment
Enclosed and Furnace-Heated Holding Tanks
Upgraded 12V On-Demand Water Pump (4 Gallons Per Minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)

Options

Solar Panels - Two 100 Watt with 30 Amp Controller
12 cu. ft. 2-Way Refrigerator with Ice Maker in Place of Standard Refrigerator and Side Pantry
Washer/Dryer
Driver and Passenger Swivel Seats
Dual Reclining Theater Seats in Place of Sofa (N/A – 34KDHD)
Entertainment Center with 50” LED TV and Fireplace in Place of Loveseat (37BHHD and 37TSHD Only)
Winegard® Trav’ler Stationary Triple LNB Satellite Dish (DirecTV® SD-HD)
Canadian Winegard® Trav’ler Stationary Triple LNB Satellite (Shaw Direct® SD-HD)
Kenwood® Front DVR Camera with Forward Collision and Departure Delay Alerts

See us for a complete list of features and available options!

All standard features and specifications are subject to change.
