New 2025 Tiffin Motorhomes GH1 Std. Model

Motor Home Class B - Diesel

Stock #122295T

Navasota, TX

NO HIDDEN FEES!!! WE DO NOT CHARGE PDI OR FREIGHT FEES!!! LET US HELP SAVE YOU MONEY!!!

1 of 24

+24

Sale Price: $149,900
MSRP: $193,784
Save: $43,884

Payments From: $1,002 /mo.

Sleeps 2

20ft Long
Stargazer

See All Specs

Specifications

Sleeps	2	Length	19 ft 6 in
Ext Width	7 ft 8 in	Ext Height	10 ft
Int Height	6 ft 3 in	Interior Color	Stargazer
Exterior Color	Arctic White Full Body Paint	Hitch Weight	5000 lbs
GVWR	9050 lbs	Fresh Water Capacity	26 gals
Grey Water Capacity	22 gals	Black Water Capacity	4.5 gals
Tire Size	LT 245/70R 17	Fuel Type	Diesel
Engine	2.0L 4-Cylinder Twin Scroll Turbo	Chassis	Mercedes-Benz 2500 Sprinter
Horsepower	211 hp	Fuel Capacity	24.5 gals
Torque	332 ft-lb	Refrigerator Type	12 Volt
Refrigerator Size	3.1 cu ft	Cooktop Burners	1
Shower Size	24" x 36"	Number of Awnings	1
AC BTU	15000 btu	Awning Info	Girard Side Mount Power w/LED Lights
Gross Combined Weight	13930 lbs	Shower Type	Wet/Bath Shower
Electrical Service	30 amp	VIN	W1W4NBVY3PT122295

Description

NO HIDDEN FEES!!! WE DO NOT CHARGE PDI OR FREIGHT FEES!!! LET US HELP SAVE YOU MONEY!!!

Tiffin Motorhomes GH1 Class B diesel motorhome highlights:

49" x 79" Gear Garage Below Power Bed
Wet Bath
Pantry
Removable Wall-Mounted Table
All-Wheel Drive

Pick a place, any place, and start packing. This off-road capable diesel van features a 49" x 79" gear garage beneath the power lift bed where you can store camp chairs, paddle boards for the lake, outdoor games and plenty of hiking gear. The on-board wet bath will keep you fresh and clean, and you can easily whip up meals and snacks in the kitchen with a single-burner induction cooktop and refrigerator beneath the counter for your perishables. There is also a sink for cleaning up and a removable counter extension. A jump seat and removable wall mounted swivel table behind the driver's seat can accommodate you for meals or a game of cards, or you can choose the optional adventure bar work/storage solution in place of the jump seat. Both front driver and passenger seats swivel to the back so you'll have plenty of seating even with company. At night, the power lift bed will allow you to get a great night's rest so you can enjoy it all again the next day!

The GH1 by Tiffin is the perfect couples coach that can take you just about anywhere you dream to go. The all-wheel drive chassis is equipped with a Fox Shock suspension package so that you can handle any type of terrain. You will enjoy on-board solar, climate controls with wall-mounted thermostat that features a built-in temperature sensor to keep you comfortable so you can go off the beaten path and stay awhile. Solid surface countertops are easy to clean and the TecnoForm cabinetry pairs nicely with the grey nickel plate thermoplastic polyolefin flooring. Enjoy cooking meals using the portable single-burner induction cooktop and 12-volt 3.1 cu. ft. refrigerator freezer with an integrated whiteboard for your perishables. You are going to love traveling in this class B diesel adventure van that will take you anywhere, even a little off-road!

Features

Standard Features (2025)

Chassis and Drivetrain Features

Mercedes-Benz® 2500 Sprinter Cargo Van Chassis
Mercedes-Benz 2.0L 4 Cylinder Twin Scroll Turbo 208HP Diesel Engine with 332 lb-ft Torque
All-Wheel Drive
220-Amp Primary/ 250 Amp Secondary Alternators
Mercedes-Benz® 9-Speed Shiftable Automatic
Custom Offroad Tiffin Adventure Wheels
Agile Offroad Fox Shocks 2.5" Rear Shocks Replacement w/Front Auxiliary Shocks
Front and Rear LT 245/70R 17 BF Goodrich® All-Terrain T/A® KO2 Tires
(1) 12-Volt AGM Chassis Battery
Front Radiator
Four Wheel ABS Brakes
Manual Parking Brake
Active Brake Assist (Collision Mitigation)
Active Distance Assist Distronic® (Adaptive Cruise Control)
Hill Start Assist
Attention Assist
Traffic Sign Assist
Load Adaptive Electronic Stability Program (ESP)
High Beam Assist
Active Lane Keeping Assist
Tire Pressure Monitoring

Electrical Features

Hydronic Heating & Electronic Appliance Equipped Coach
3,000-Watt Pure Sine Wave Inverter/Charger
(1) 15,000-BTU Gree Eco-Cool Air Conditioner with Heat Pump, Soft-start and Bluetooth Capability
Wall-mounted Thermostat with Built-in Temperature Sensor
Aqua-Hot® 125 Modular Diesel Heat Exchanger
SmartPlug® Detachable 30-Amp Shore Power Cord
(2) 110-Watt Solar Panel with (1) 30-Amp Controller
Mercedes-Benz® Wireless Internet Access
Roof Port Wiring Access for Aftermarket Electronics
12-Volt Breaker Panel
12-Volt Disconnect Switch
USB Receptacles Throughout Coach
Wire Prep for Starlink® Pro

Internet & Phone

Factory-Installed Starlink Pro (Optional)

Battery Options

540-Amp Hour Battle Born Lithium-Ion Battery Kit (Optional)
810-Amp Hour Max Power Lithium-Ion Battery Kit (Optional)

Plumbing

Aqua-Hot® 125 Modular Diesel Heat Exchanger
Water Heater Bypass System
Water Filter
Water Pump
Low-point Water Drain Lines
Gravity Water Fill
Exterior Water Fill Valve
SeeLeveL™ Tank Monitor
Fresh Water Hookup for City Water and Tank Fill
Sewer Hose Storage
Galley Sink Drain Macerator Pump
Fresh Water Recirculation System (Showermiser)

Exterior

(1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
Low profile roof rack
Tinted Acrylic Windows
Single-Row Low-Profile Light Bar
Exterior Patio Light
Fog Lights
LED Lights Under Exterior Running Boards
Heated, Electrically Adjustable Side-view Mirrors
Screen Door Package
Fixed Side-mounted All-Welded Ladder
Rear Mud Guards
Low-Profile Running Board with 12-Volt Lighting
Fold-down Table
ARB On-Board Air Compressor w/ Front and Rear Chucks

Paint Options

Blue Grey
Arctic White
Selenite Grey
Pebble Grey

Interior

Stargazer Interior Décor Package
TecnoForm® Cabinetry
Grey Nickel Plate Thermoplastic Polyolefin Flooring
Dimmable LED Lighting
Interior Multicolor Accent Lighting
Carbon Monoxide Detector
LPG Leak Detector
Smoke Detector
Fire Extinguisher
Solar Shades
Powered Roof Vents
Solid Surface Countertop

Driver's Compartment Features

Heated Leather Seats with Electronic Controls
Swivel Bases for Driver and Passenger Seats
Leather Wrapped Steering Wheel with Integrated Controls
Keyless Start
Rain Sensor for Windshield Wipers
Automatic LED Headlights
Parking Package with 360° View Camera
Interior Rear-view Mirror
Crosswind Assist
Driver and Passenger Air Bags
Blind Spot Monitoring System
Emergency Call System
Smartphone Integration For Apple Carplay® and Android™ Auto
Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
Tray for Smartphones with Charging Ports
Intelligent Navigation
Powered Windows
Door-mounted Driver and Passenger Assist Handles
Powered Door Locks
Instrument Cluster with Color Display

Dinette and Living Area

Adventure Bar Work/Storage Solution (Removes Jump Seat) (Optional)
Space-Saving, Fully Adjustable, Luxury Jump Seat with Ultrafabrics® Montage (Seating for 4)
Removable, Wall-mounted Swivel Table, and Overhead Cabinets

Kitchen

12-Volt, 3.1-Cubic Foot Refrigerator with Freezer and Integrated Whiteboard
Portable Single-Burner Induction Cooktop
12-Volt Roof Vent Fan
Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
Galley Overhead Cabinets with Rigid Aluminum Frame
Removable Counter Extension

Bedroom

49" x 79" Power Lift Bed with Gear Garage Below

Bathroom

24" x 36" Wet Bath with Toilet Platform
Handheld Shower Head
Shower Skylight
Cassette Toilet
Dry-roll Toilet Paper Dispenser
Roof Vent Fan
Water-Tight Storage Compartment

Optional GH1 Package (Optional)

Package includes: Solar controller upgrade to MPPT, bumper mounted LED lights, audio system upgrade, and residential-grade foam mattress, Agile Offroad hood strut kit, custom GH1 wheels, Tank level + Solar Controller integration into Victron Screen

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Great people to do business with!!
Tex and his crew are great to work with from start to finish. Always helpful to make sure you get exactly what you want!

Darby from Arcadia, NE
Excellent Customer Service
I can not say enough good things about Tim Meadows, one of the owners of T&S RV and his technicians!! We brought our Landmark fifth wheel in for warranty work with a long list small things that needed to be repaired. Everything on our list was fixed to perfection, and even some things we did not know

Brenda
Best RV Dealership in the United States
I drove all the way from Myrtle Beach, South Carolina to purchase a rig from them! Dustin made the process fast and smooth.

Brittany from Johnsonville, SC

We are here to help, call us at
936-825-2357 or Contact Us

We are here to help!

;

T&S RV and Sport is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer-provided pictures, specifications and features may be used as needed. Inventory shown may be only a partial listing of the entire inventory. Please contact us at 936-825-2357 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Tiffin Motorhomes GH1 Std. Model

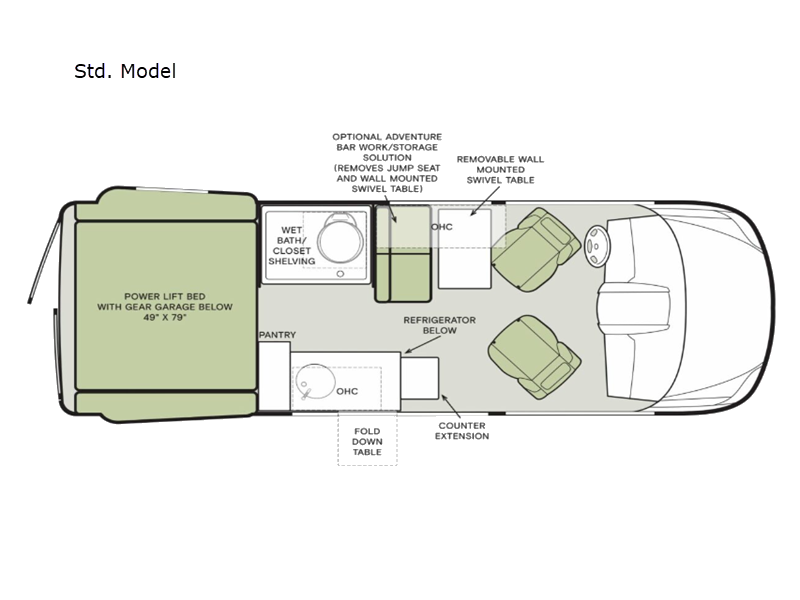

Std. Model Floorplan
